HTL’s System 203 is an advanced high temperature thermal lining system (TLS) is able to withstand
extreme temperatures and thermal shock associated with effective fire training conducted in accordance with NFPA 1403. System 203 protects structural components of live fire training structures from temperatures up
to 2000°F, while not allowing temperatures exceeding 300°F to 350°F to be transmitted to the structure. System 203 provides extraordinary thermal protection to your building while resisting mechanical damage from tossed pallets, breathing apparatus, fire training equipment and high-pressure water streams. System 203 withstands pressurized steam created when using mechanically pressurized water for fire extinguishment. HTL’s interlocking system allows for minimum water and steam penetration into the TLS and protects the structure from the same harmful effects. This system withstands repeated high temperatures and extreme thermal shocks developed with live fire training evolutions. System 203 resists degradation such as spalling, cracking or splintering while allowing for expansion and contraction of materials responding to rapidly fluctuating temperatures.

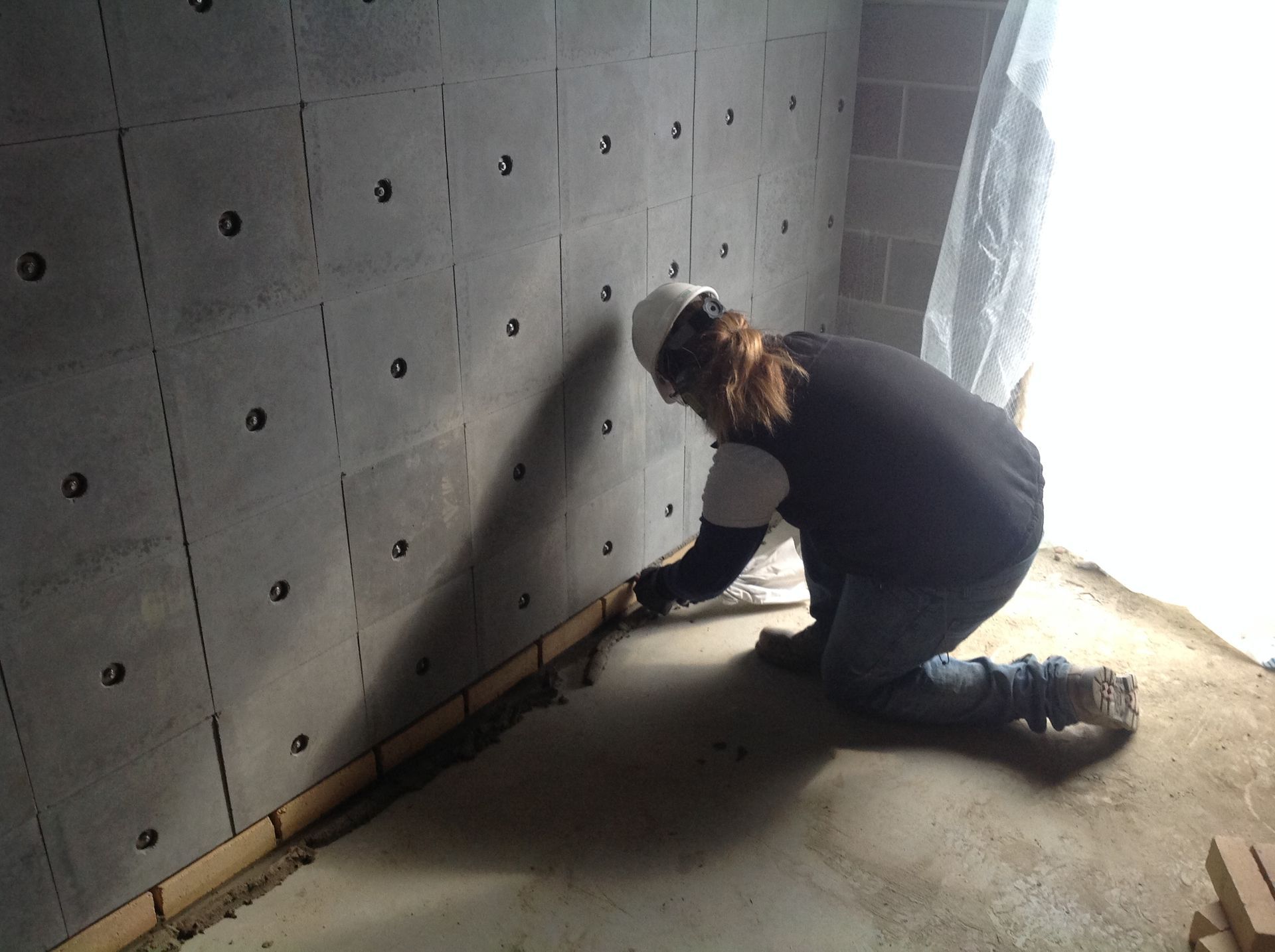

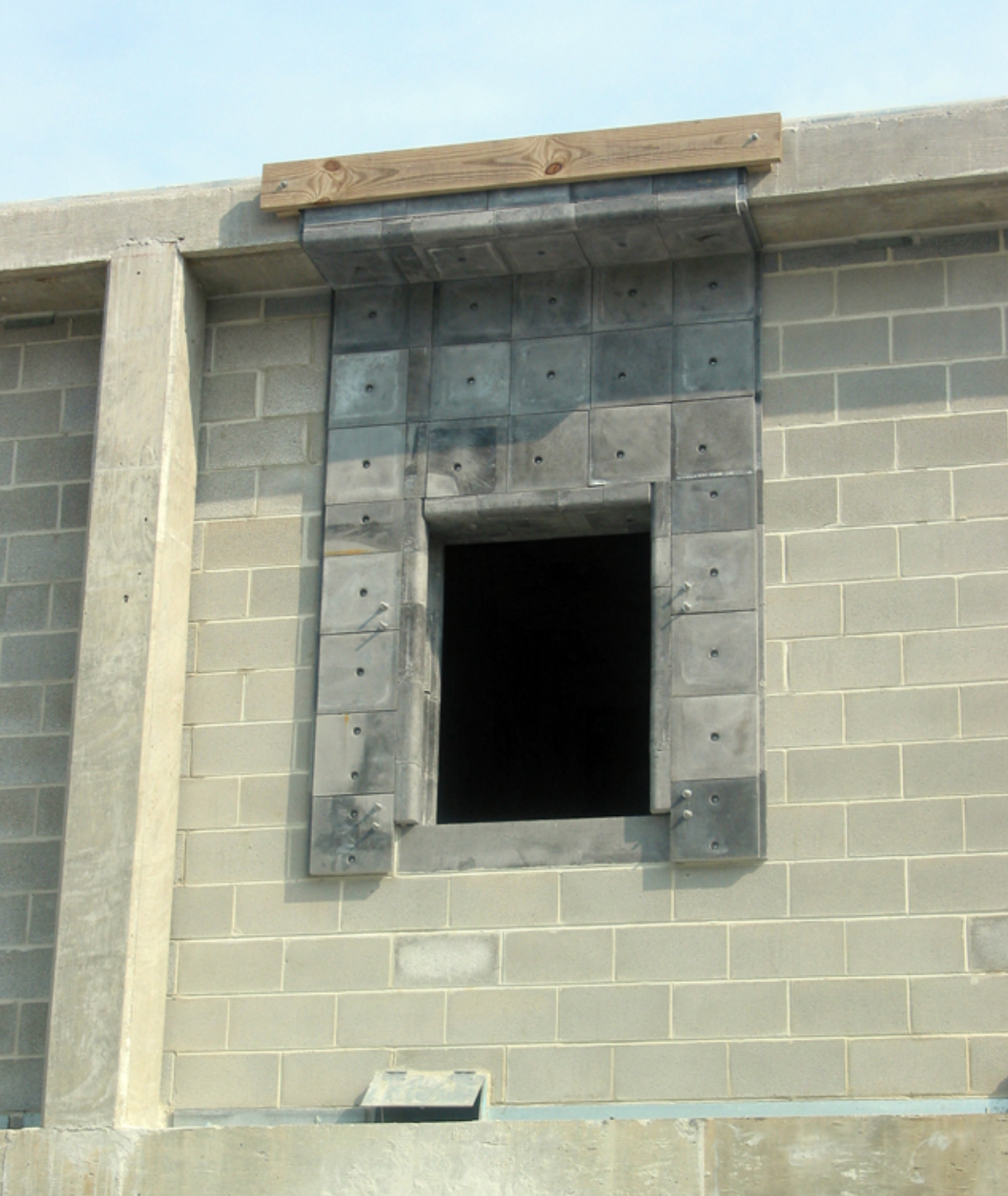

System 203 includes interlocking refractory concrete tiles which encapsulate a layer of insulation. Each fire tile is individually anchored to the structure with a solid stainless-steel bolt. This system, with the interlocking feature of the tiles, allows the lining to “float” with temperature fluctuations. Expansion / Contraction joints are built into the
system at 12” on center, each way. The completed installation offers superior protection to your structure and is designed to last for 20 years with reasonable maintenance.
System 203 is free from asbestos or other harmful ingredients, and does not produce toxic bi-products in
the course of the intended use.
System 203 comes with a five year warranty when the system is used in accordance with NFPA 1403.
Dimensions: (nominal)
System 203 fire tile - 12" x 12" x 1 3/4" (305mm x 305mm x 44mm)
Insulation: 1" thick
Weights:
System 203 - 22 pounds per square foot

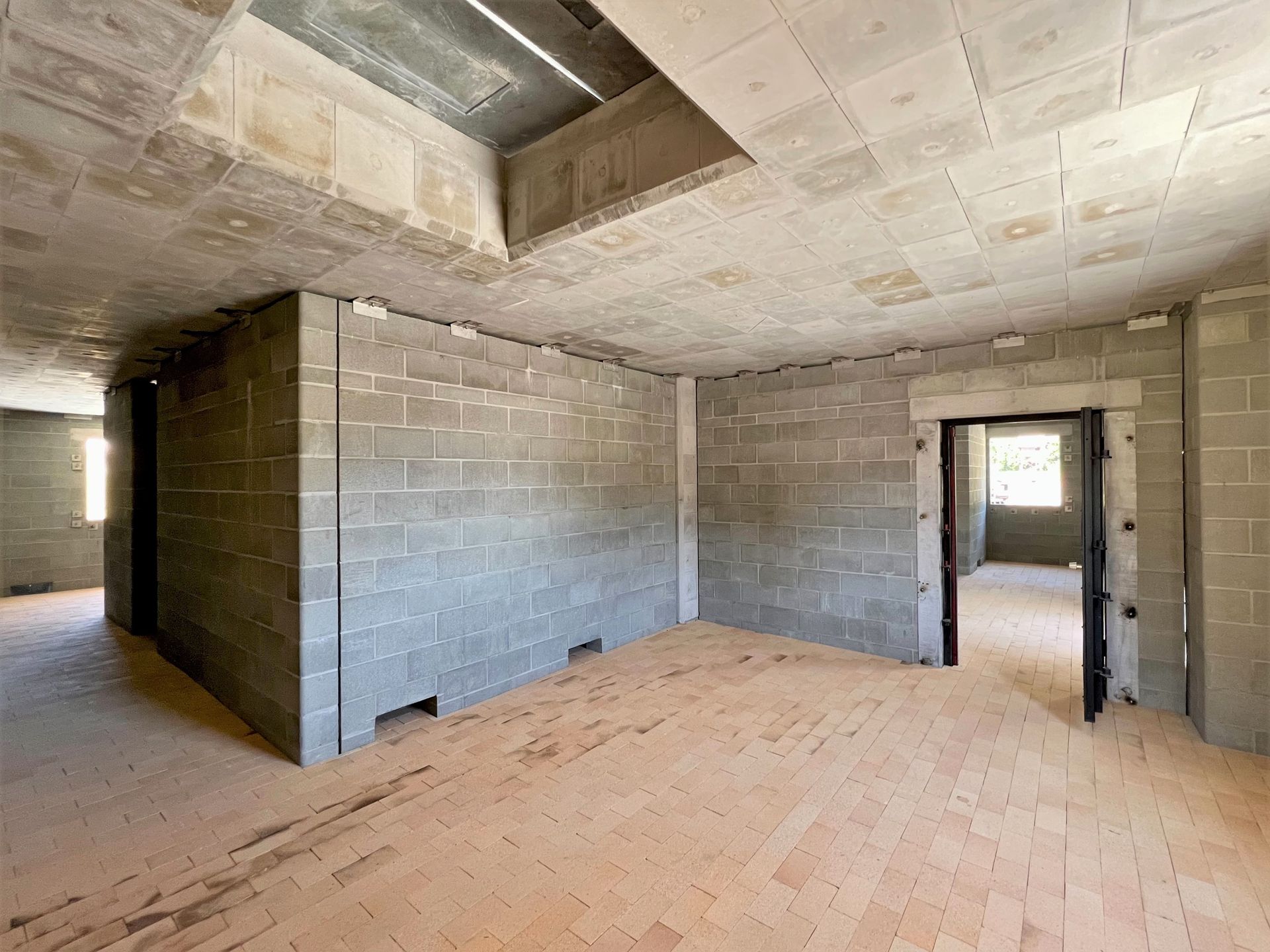

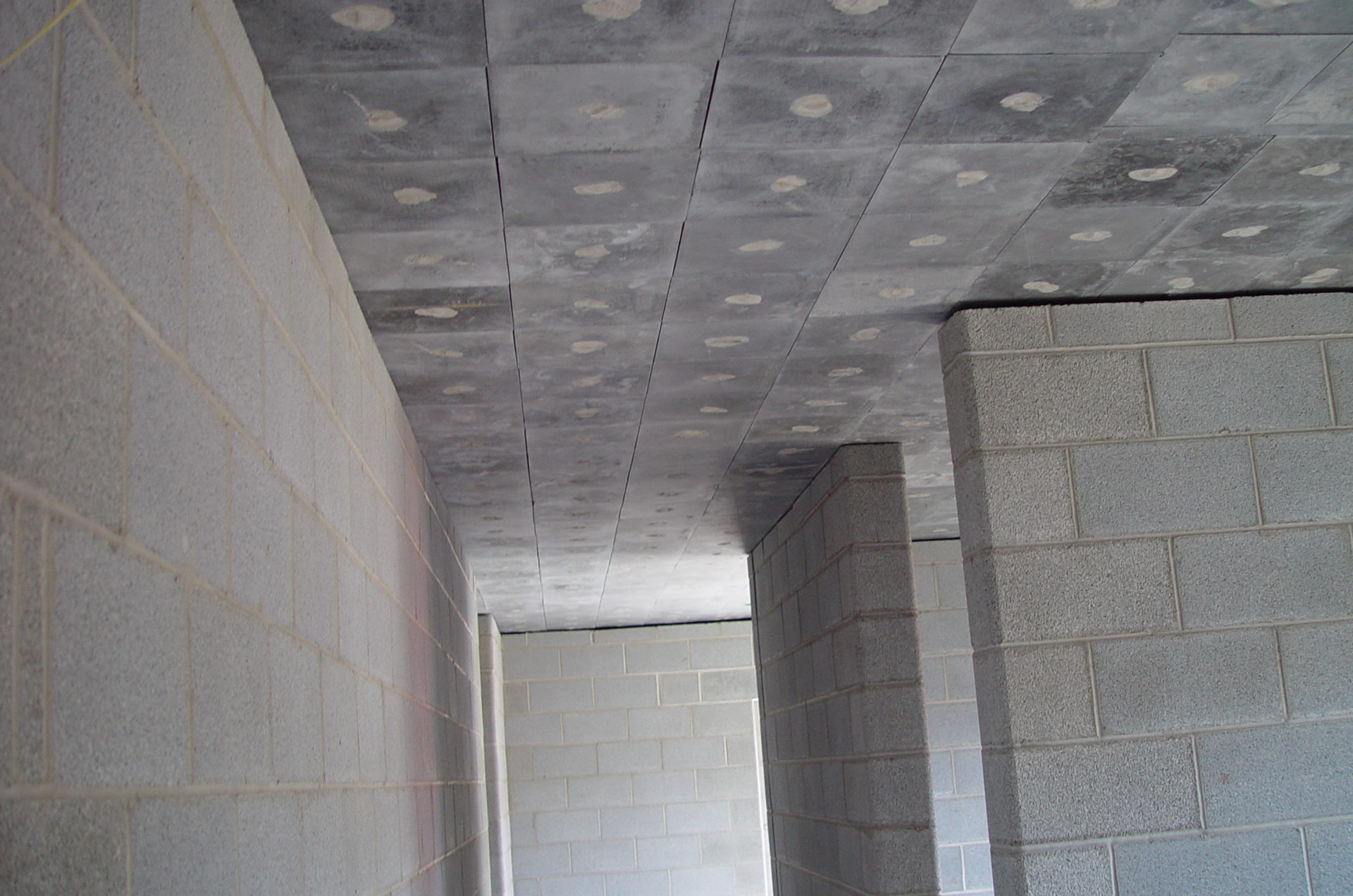

System 203 - Used on ceilings and walls in both Class A and Class B training
rooms.
System 203 Lite accommodates thermocouples
monitoring temperatures on both hot and cold faces of the lining. Customers
typically record temperatures in the range of 800°F to 1400°F on the hot face of ceilings, and less than 200°F behind System 203.
System 203 has been installed in approximately 200 live fire training
structures. A complete list of projects, with contact
